ATM, APC, APLSmall versatile capacitors with low-loss ceramic, excellent for knob-tuned RF applications
N50, S2, S3Compact, rugged, and economical, with a large capacitance in a small volume, used in low- voltage tuning applications
M73, M90, M97Large, robust units made for the high voltage, current, and continuous duty requirements of semifab equipmentAir Variable Capacitors
If you give us your required capacitance range, voltage, amperage, size limits, and any other requirements, we’ll give you a quote with specs. Send a Request For Quotation Here.
Showing 1–12 of 33 results
-

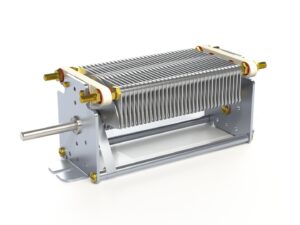

73-1-32-65N
$213.00 1pc: $213 2-4pcs $178 5pcs+ $155
Min Capacitance pF: 22pF Max Capacitance pF: 1017pF Max Voltage, Vrms: 1100 V Max Current, Arms: 2 Arms -
ATM-9
$61.00 1pc: $61 2-4pcs $40 5pcs+ $24
Air Gap: 0.016 inches Min Cap: 1.7pF Max Cap: 8.9pF Max Voltage: 500Vrms -
73-1-32-99N
$281.00 1pc: $281 2-4pcs $234 5pcs+ $205
Min Capacitance pF: 31pF Max Capacitance pF: 1558pF Max Voltage, Vrms: 1100 Vrms Max Current, Arms: 2 Arms -
ATM-13
$63.00 1pc: $63 2-4pcs $40 5pcs+ $25
Air Gap: 0.016 inches Min Cap: 2.1pF Max Cap: 12.9pF Max Voltage: 500Vrms -
73-1-45-45TC
$484.00 1pc: $484 2-4pcs $354 5pcs+ $276
Min Capacitance pF: 20pF Max Capacitance pF: 495pF Max Voltage, Vrms: 1550 Vrms Max Current, Arms: 20 Arms -
ATM-22
$64.00 1pc: $64 2-4pcs $41 5pcs+ $25
Air Gap: 0.016 inches Min Cap: 2.9pF Max Cap: 21.8pF Max Voltage: 500Vrms -
APC143G
$64.00 1pc: $64 2-4pcs $41 5pcs+ $26
Air Gap: 0.016 inches Min Cap: 7.2pF Max Cap: 143pF Max Voltage: 500Vrms -
16APL153
$63.00 1pc: $63 2-4pcs $40 5pcs+ $25
Single hole mount Delrin shaft Air Gap: 0.016 inches Min Cap: 6.4pF Max Cap: 153pF Max Voltage: 640Vrms -
73-1-75-37N
$123.00 1pc: $123 2-4pcs $103 5pcs+ $90
Min Capacitance pF: 19pF Max Capacitance pF: 253pF Max Voltage, Vrms: 2500 Vrms Max Current, Arms: 2 Arms -
16APL313
$69.00 1pc: $69 2-4pcs $44 5pcs+ $29
Single hole mount Delrin Shaft Air Gap: 0.016 inches Min Cap: 10.5pF Max Cap: 313pF Max Voltage: 640 Vrms -

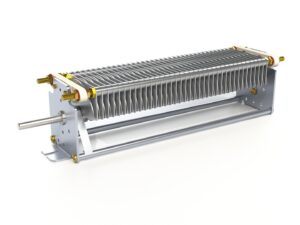

73-1-75-75N
$162.00 1pc: $162 2-4pcs $134 5pcs+ $119
Min Capacitance pF: 33pF Max Capacitance pF: 517pF Max Voltage, Vrms: 2500 Vrms Max Current, Arms: 2 Arms -
32APL51
$60.00 1pc: $60 2-4pcs $38 5pcs+ $24
Single hole mount Delrin shaft Air Gap: 0.032 inches Min Cap: 5pF Max Cap: 51pF Max Voltage: 1070 Vrms
