Home / Air Variable Capacitors / ATM, APC, APL / ATM-22

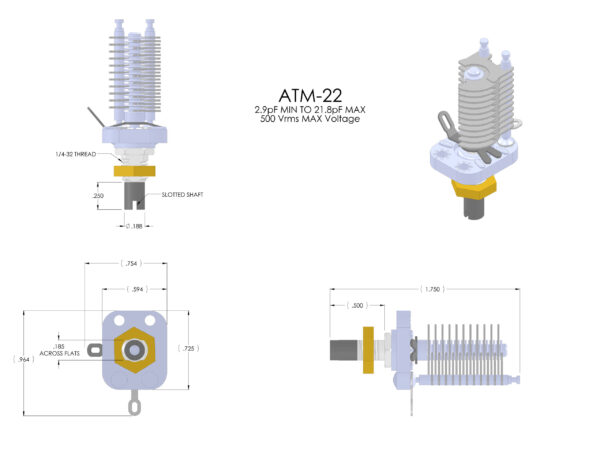

ATM-22

$62.00

Click Image to Enlarge.

1pc: $62
2-4pcs $39
5pcs+ $24

Air Gap: 0.016 inches
Min Cap: 2.9pF
Max Cap: 21.8pF
Max Voltage: 500Vrms


  • ATM-13

    $61.00 1pc: $61 2-4pcs $38 5pcs+ $24
    Air Gap: 0.016 inches Min Cap: 2.1pF Max Cap: 12.9pF Max Voltage: 500Vrms
  • 80APL36DE

    $68.00 1pc: $68 2-4pcs $44 5pcs+ $29
    Single hole mount   Air Gap: 0.080 inches Min Cap: 9pF Max Cap: 36pF Max Voltage: 2000 Vrms
  • 32APL51

    $58.00 1pc: $58 2-4pcs $37 5pcs+ $23
    Single hole mount Delrin shaft   Air Gap: 0.032 inches Min Cap: 5pF Max Cap: 51pF Max Voltage: 1070 Vrms
  • Custom RFQ

    Made to Order Capacitors   http://www.orenelliottproducts.com/custom-capacitor-quotation/
