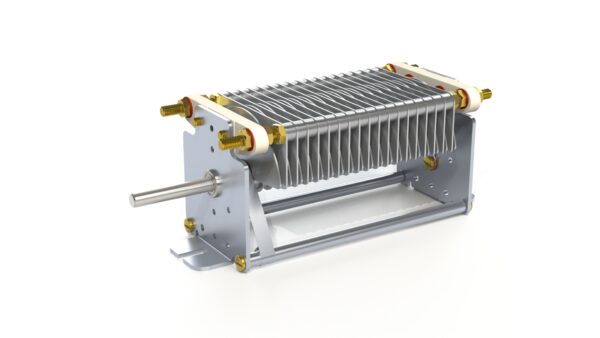

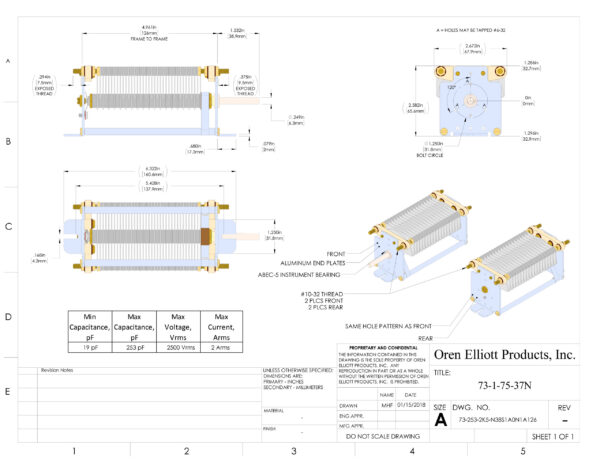

73-1-75-37N
$118.00
Click Image to Enlarge.
1pc: $118
2-4pcs $99
5pcs+ $87
Min Capacitance pF: 19pF
Max Capacitance pF: 253pF
Max Voltage, Vrms: 2500 Vrms
Max Current, Arms: 2 Arms
Air Variable Capacitors
-
N50-19PTX-KIT
$95.00 1pc: $95 2-4pcs $66 5pcs+ $48
Air Gap: 0.036" Min Cap: 5.4pF Max Cap: 19.1pF Max Voltage: 1200Vrms 8:1 Reduction Drive (8 Turns of Shaft = 1 Blade Rotation) (Drop-in replacement for the 26-152 & 26-152P capacitors and the reduction drive unit, that goes into the Heathkit HW-8 transceiver.) The original 26-152 is now an obsolete configuration (our old NS-51 series), but we've replaced it with our still-current N50 series. Because the N50 is longer than the NS-51, this kit includes a new bracket, and replaces the original stand-alone reduction drive unit with the integral (built-in) reduction drive unit within the capacitor itself. We also provide a bushing to mount the original dial (but not the dial itself). This replacement kit will have the same curve (relationship between capacitance and rotor angle) as the original cap, and will have one significant advantage: With the original planetary drive unit, output torque was very high, and users would frequently damage the capacitor by inadvertently trying to tune past the capacitor's hard stops at min and max capacitance. This new unit is designed to slip at these stops, without damaging the capacitor. -
APC143G
$62.00 1pc: $62 2-4pcs $39 5pcs+ $25
Air Gap: 0.016 inches Min Cap: 7.2pF Max Cap: 143pF Max Voltage: 500Vrms -
16APL153
$61.00 1pc: $61 2-4pcs $38 5pcs+ $24
Single hole mount Delrin shaft Air Gap: 0.016 inches Min Cap: 6.4pF Max Cap: 153pF Max Voltage: 640Vrms -
73-1-12-37N
$110.00 1pc: $110 2-4pcs $92 5pcs+ $81
Min Capacitance pF: 22pF Max Capacitance pF: 171pF Max Voltage, Vrms: 1100 Vrms Max Current, Arms: 2 Arms
