B1N6X0
$55.00
Click Image to Enlarge.
1pc: $55
2-4pcs $42
5pcs+ $34

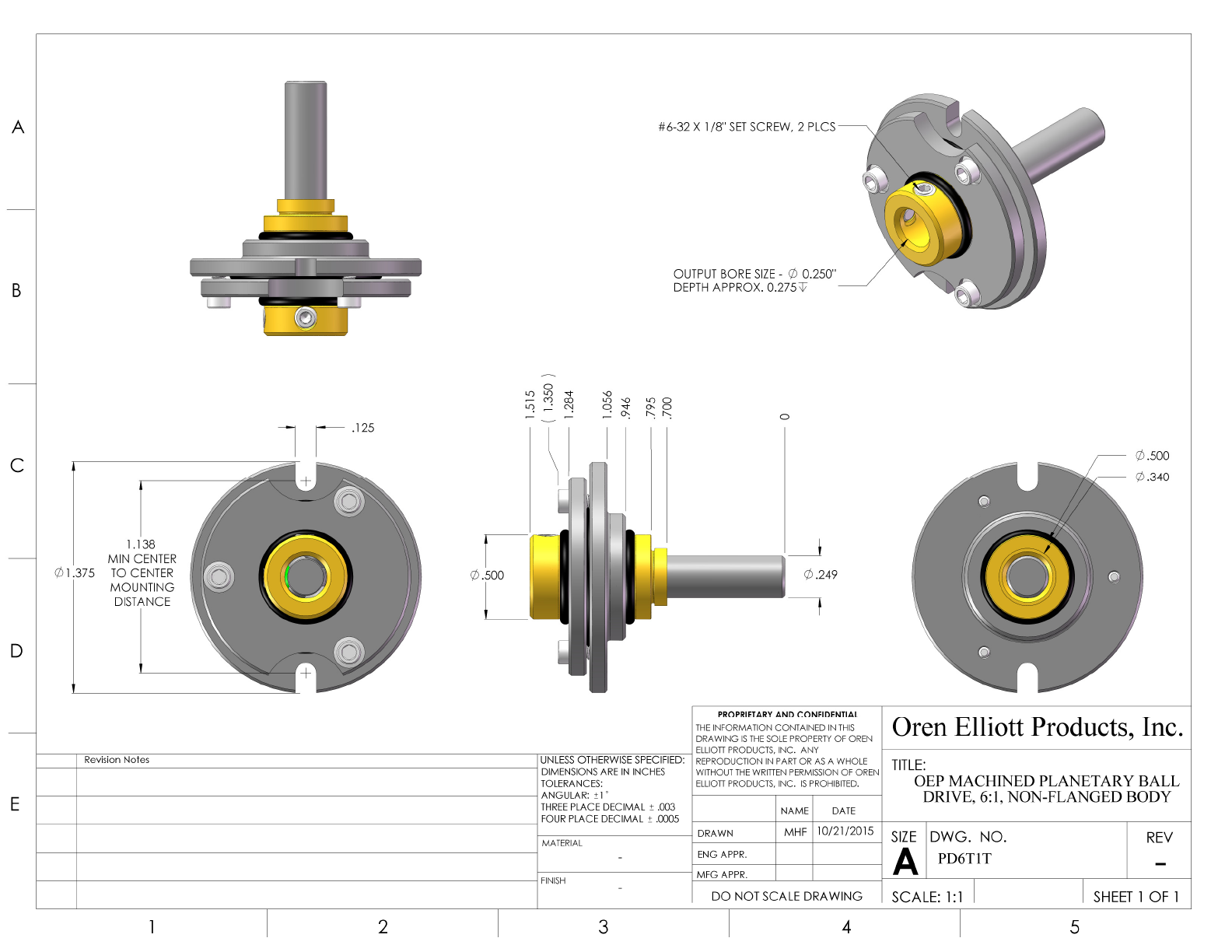

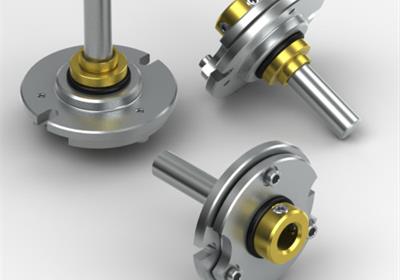

The ball drive, or planetary reduction drive, allows the user to obtain finer tuning control with silky-smooth reduction, so that the driven bore rotates one time for every 6 rotations of the input knob. The B1N6X0 is the same as the B1F6X0 but the flange intended for dial mounting has been omitted.
RATIO: 6:1, Reduction
NO DIAL FLANGE
NO KNOB INCLUDED
Constant input/output relative position?: NO
Planetary Reduction Drives
-
BD601
$38.00 1pc: $38 2-4pcs $24 5pcs+ $15
The ball drive, or planetary reduction drive, allows the user to obtain finer tuning control with silky-smooth reduction, so that the driven bore rotates one time for every 6 rotations of the input knob. Ratio: 6:1, Reduction Flanged Body NO KNOB INCLUDED Stamped Construction Constant input/output relative position?: NO -
BD601-HW101
$38.00 1pc: $38 2-4pcs $24 5pcs+ $15 Our standard BD601, but with a special short shaft, to serve as a drop-in replacement for the original unit in the Heathkit HW-101. -
B2K25X5
$130.00 1pc: $130 2-4pcs $115 5pcs+ $108
The ball drive, or planetary reduction drive, allows the user to obtain finer tuning control with silky-smooth reduction, so that the driven bore rotates one time for every 25 rotations of the fine input knob and one time for every 5 rotations of the coarse input knob. FINE RATIO: 25:1, Reduction COARSE RATIO: 5:1, Reduction KNOBS INCLUDED Constant input/output relative position?: NO -
BD602
$38.00 1pc: $38 2-4pcs $24 5pcs+ $15
The ball drive, or planetary reduction drive, allows the user to obtain finer tuning control with silky-smooth reduction, so that the driven bore rotates one time for every 6 rotations of the input knob. Ratio: 6:1, Reduction NO DIAL FLANGE NO KNOB INCLUDED Stamped Construction Constant input/output relative position?: NO
