Home / Air Variable Capacitors / ATM, APC, APL / 32APL208DE

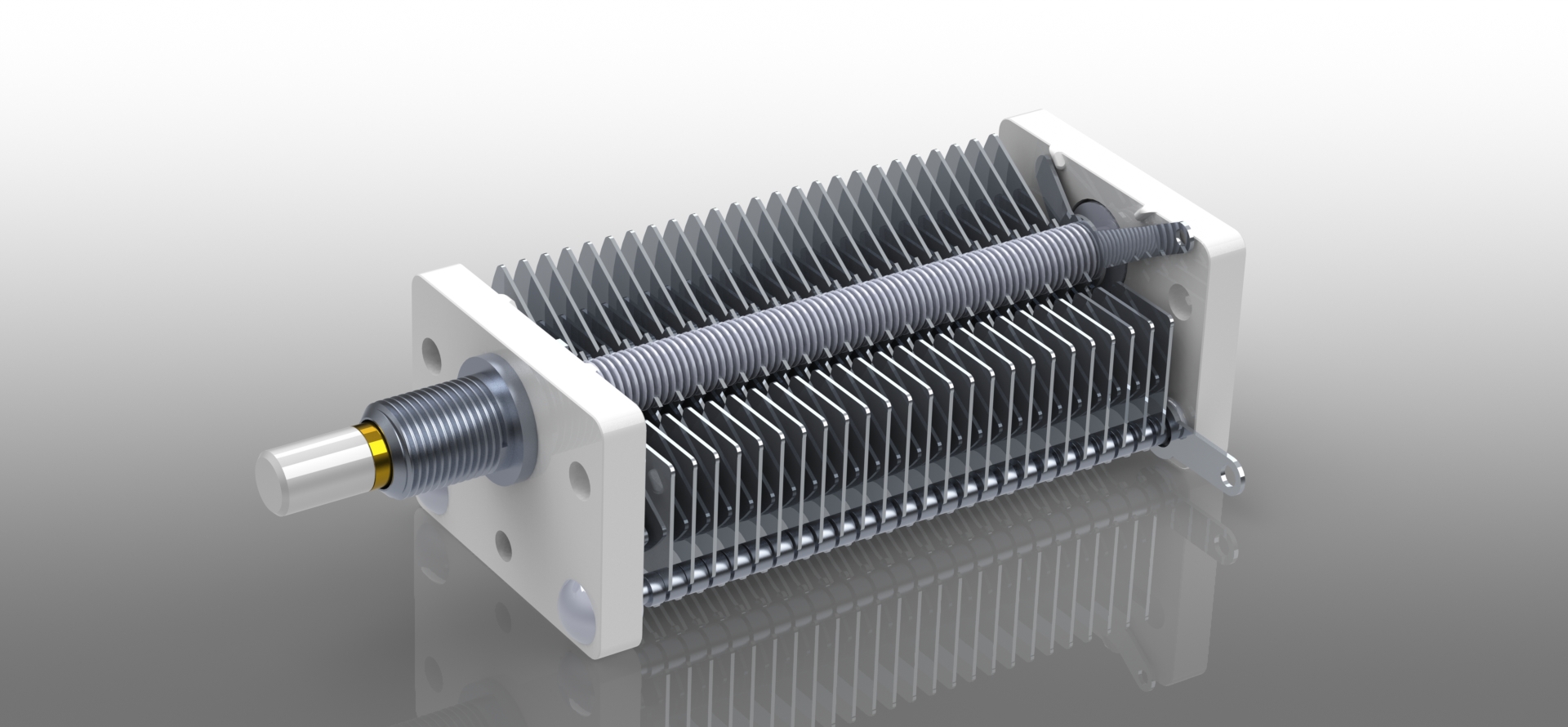

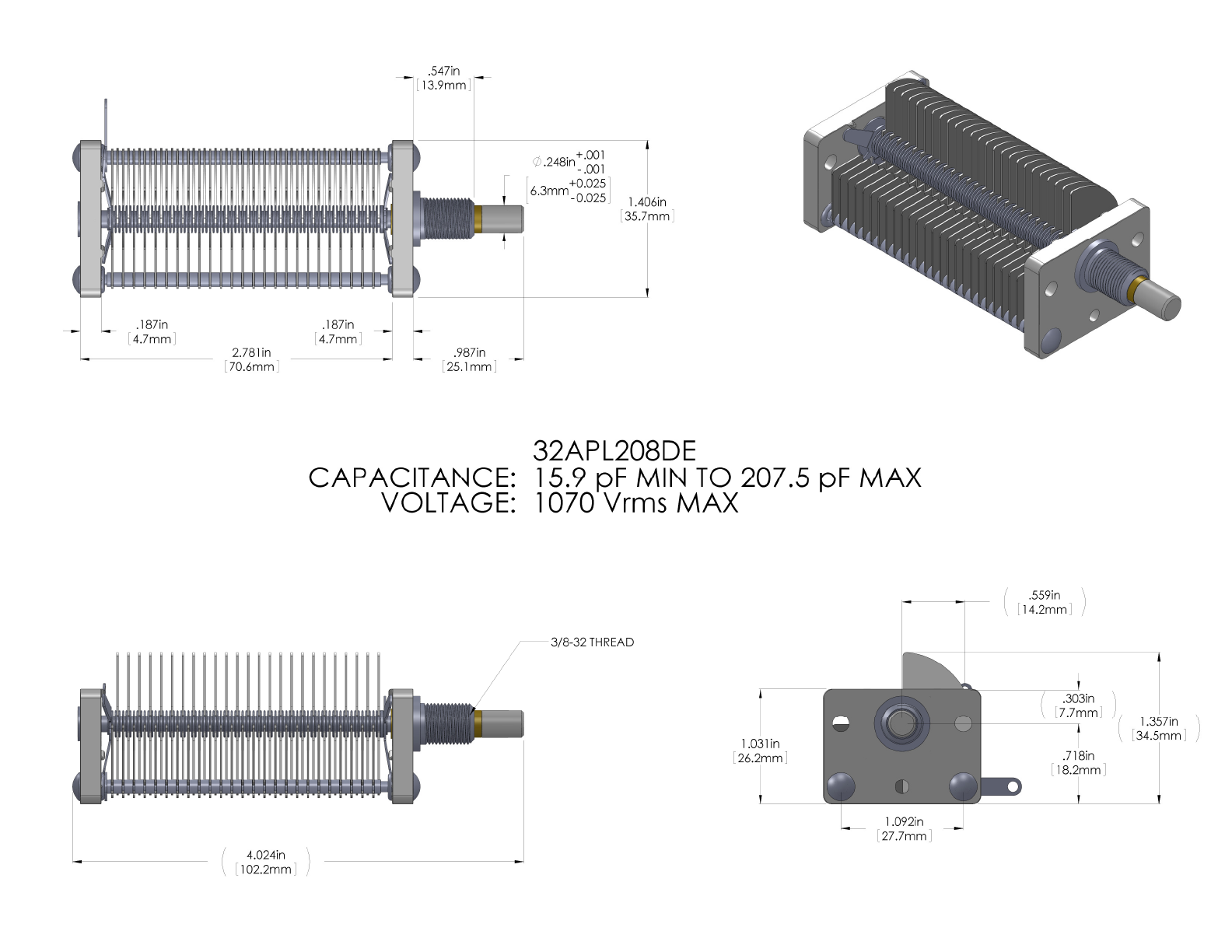

32APL208DE

$76.00

Click Image to Enlarge.

1pc: $76
2-4pcs $49
5pcs+ $33

Single hole mount
Delrin shaft



Air Gap: 0.032 inches
Min Cap: 15.9pF
Max Cap: 208pF
Max Voltage: 1070 Vrms


Air Variable Capacitors

  • ATM-13

    ATM-13

    $63.00 1pc: $63 2-4pcs $40 5pcs+ $25
    Air Gap: 0.016 inches Min Cap: 2.1pF Max Cap: 12.9pF Max Voltage: 500Vrms
  • 73-1-75-37N

    73-1-75-37N

    $123.00 1pc: $123 2-4pcs $103 5pcs+ $90
    Min Capacitance pF: 19pF Max Capacitance pF: 253pF Max Voltage, Vrms: 2500 Vrms Max Current, Arms: 2 Arms
  • 73-1-12-53W

    73-1-12-53W

    $128.00 1pc: $128 2-4pcs $105 5pcs+ $94
    Min Capacitance pF: 30pF Max Capacitance pF: 245pF Max Voltage, Vrms: 3500 V Max Current, Arms: 5 Arms
  • 80APL36DE

    80APL36DE

    $71.00 1pc: $71 2-4pcs $46 5pcs+ $30
    Single hole mount   Air Gap: 0.080 inches Min Cap: 9pF Max Cap: 36pF Max Voltage: 2000 Vrms
